연세의대, KIRAMS / 권나혜, 장영재, 김동욱*, 최상현*
Abstract

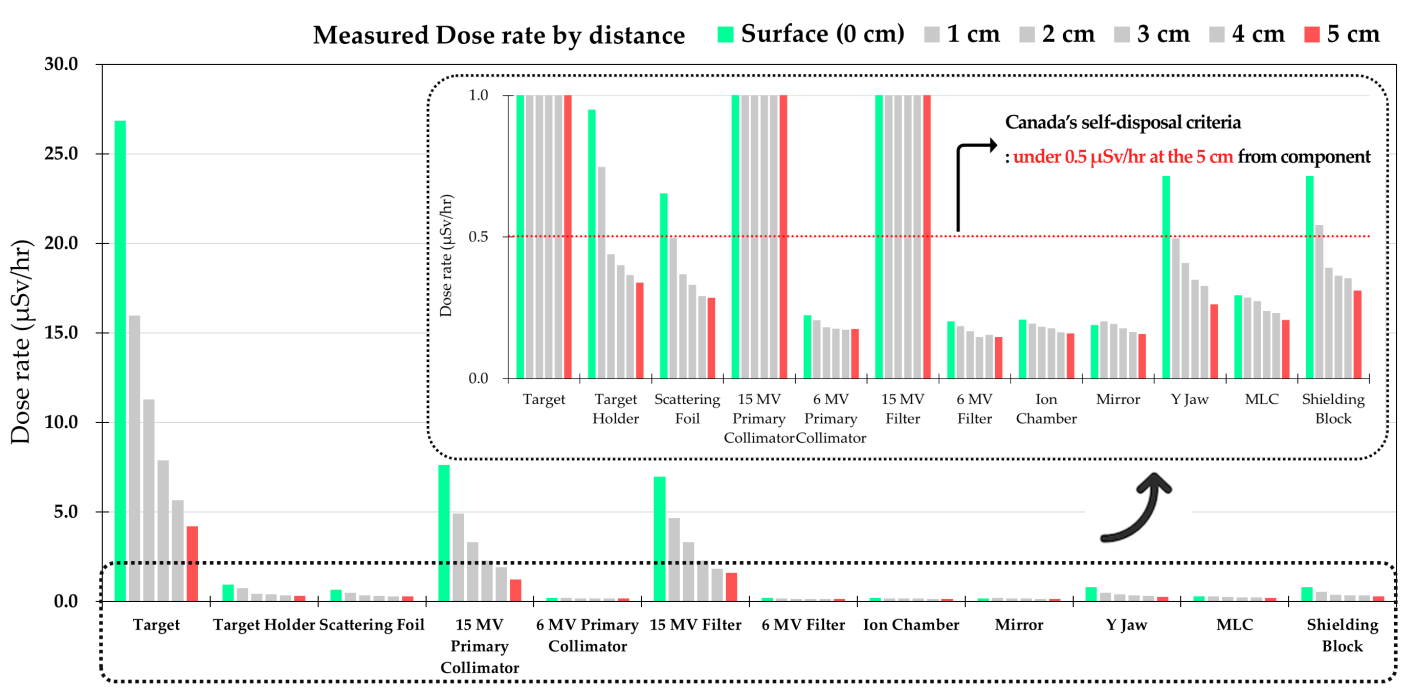

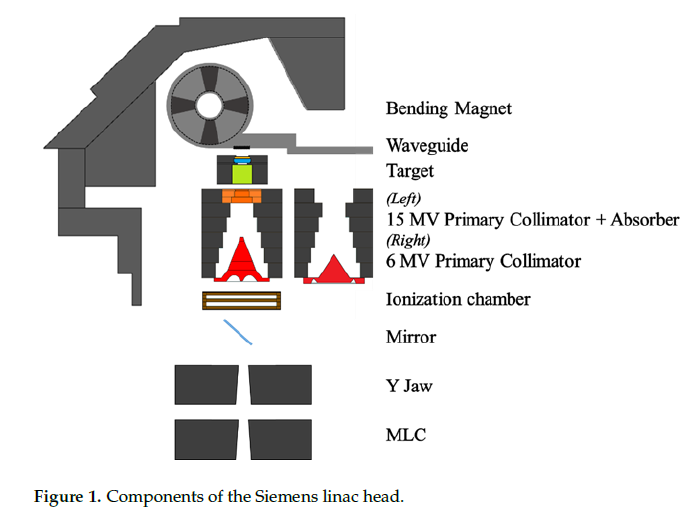

For the medical linear accelerators (linac) that utilize more than 10 MV of photon energy, components inside the linac head become radioactivate during the 10–15-year operating cycle. Prior to disposal, radioactive waste must be evaluated for activity, and the same procedure should be followed for medical linacs. In the Republic of Korea, regulation and methodology for the radioactivity evaluation for the medical linac is not established yet. In this study, we employed gamma spectroscopy and a survey meter for evaluating the radioactivity of medical linac components. The components of the Siemens linac considered in this study were classified after decommissioning, and dose rates were measured to up to a 5 cm distance from the component surfaces by using a survey meter. Radionuclides from components were detected using an in situ HPGe detector. Based on the type of radionuclides and dose rate, we estimated the radioactivity of the components. We studied the feasibility of the methodology for disposing of radioactive components by using the in situ HPGe detector.
Affiliations
Na Hye Kwon1,2,† , Young Jae Jang3,4,† , Kum Bae Kim4,5 , Ji Hyun Yu6, Jinsung Kim 1,2,7, Dong Wook Kim
1,2,* and Sang Hyoun Choi4,5,*
1
Department of Radiation Oncology, Yonsei Cancer Center, Heavy Ion Therapy Research Institute, Yonsei University College of Medicine, Seoul 03722, Republic of Korea
2
Medical Physics and Biomedical Engineering Lab (MPBEL), Yonsei University College of Medicine, Seoul 03722, Republic of Korea
3
Department of Accelerator Science, Korea University, Sejong 30015, Republic of Korea
4
Research Team of Radiological Physics & Engineering, Korea Institute of Radiological & Medical Sciences, Seoul 01812, Republic of Korea
5
Department of Radiation Oncology, Korea Institute of Radiological & Medical Sciences, Seoul 01812, Republic of Korea
6
R&D Institute, Sae-An Enertech Corp, Daejeon 34016, Republic of Korea
7
Oncosoft Inc., Seoul 03787, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
편집위원
본 연구는 사용 후 폐기되는 치료용 선형가속기의 방사화 부품에 대한 규제기술을 개발하고자 하였음. HPGe를 이용하여 일렉타, 베리안, 지멘스 3사의 치료용 선형가속기의 각 부품에 대한 방사화를 측정하고 핵종을 분석하는 핵심 기술에 대하여 알 수 있어 가치가 높은 논문이라고 생각됨
2023-02-06 15:53:13
편집위원2
지금까지 사용하던 선형가속기를 폐기할 때 별다른 측정이나 평가를하지 않았는데 고에너지 선형가속기를 10년 이상 사용했을 때 방사화가 어느 정도 되었는지 처음으로 평가를 해 보았다는 점에서 의미가 크다고 하겠다.
2023-02-06 15:53:30
