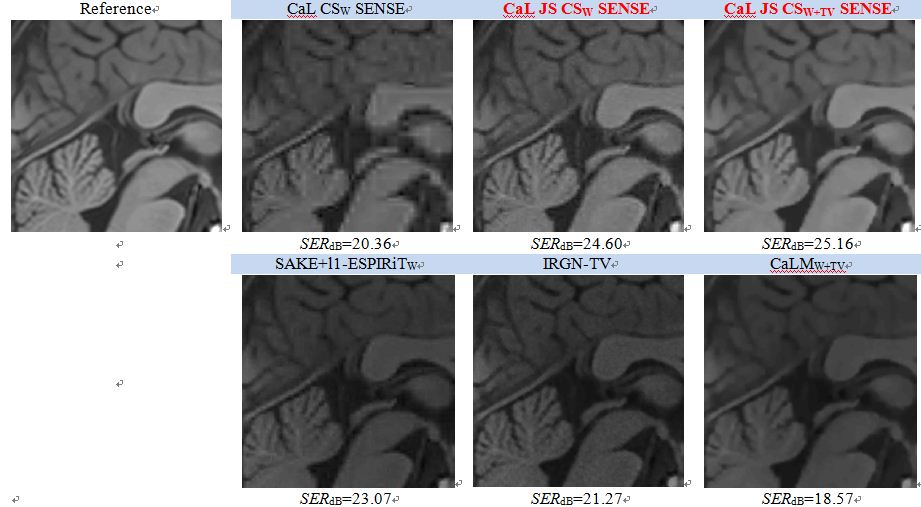

Figure: Calibration-less pMRI 영상 복원 기술들에 의해 복원된 영상들의 비교 (약 15%의 노이즈 섞인 k-space 데이타; 4개의 수신코일; 512x512의 영상 사이즈): 제안된 Calibration-Less (CaL) JS CS SENSE 기술은 다른 최신 기술보다 더 좋은 영상을 (1.9~6.6의 SER_dB차이로) 복원하는 결과를 보여줍니다.

​

Abstract

The theory and techniques of compressed sensing (CS) have shown their potential as a breakthrough in accelerating k-space data acquisition for parallel magnetic resonance imaging (pMRI). However, the performance of CS reconstruction models in pMRI has not been fully maximized, and CS recovery guarantees for pMRI are largely absent. To improve reconstruction accuracy from parsimonious amounts of k-space data while maintaining flexibility, a new CS SENSitivity Encoding (SENSE) pMRI reconstruction framework promoting joint sparsity (JS) across channels (JS CS SENSE) is proposed in this paper. The recovery guarantee derived for the proposed JS CS SENSE model is demonstrated to be better than that of the conventional CS SENSE model and similar to that of the coil-by-coil CS model. The flexibility of the new model is better than the coil-by-coil CS model and the same as that of CS SENSE. For fast image reconstruction and fair comparisons, all the introduced CS-based constrained optimization problems are solved with split Bregman, variable splitting, and combined-variable splitting techniques. For the JS CS SENSE model in particular, these techniques lead to an efficient algorithm. Numerical experiments show that the reconstruction accuracy is significantly improved by JS CS SENSE compared with the conventional CS SENSE. In addition, an accurate residual-JS regularized sensitivity estimation model is also proposed and extended to calibration-less (CaL) JS CS SENSE. Numerical results show that CaL JS CS SENSE outperforms other state-of-the-art CS-based calibration-less methods in particular for reconstructing non-piecewise constant images.

Author information​

Chun IY, Adcock B, Talavage TM.​
